Godrej Heat Recovery System

What is Heat Recovery System

Heat recovery is capturing and transferring the waste heat from a process with a gas or liquid

back to the system as an extra energy source. The energy source can be used to create additional

Heat.

  • Dumped Heat – That can still be reused
  • Waste Heat Recovery saves Fuels and Electricity
  • Industry We Serve

Automotive

Chemical

Textile

Dairy

FMCG

Engineering

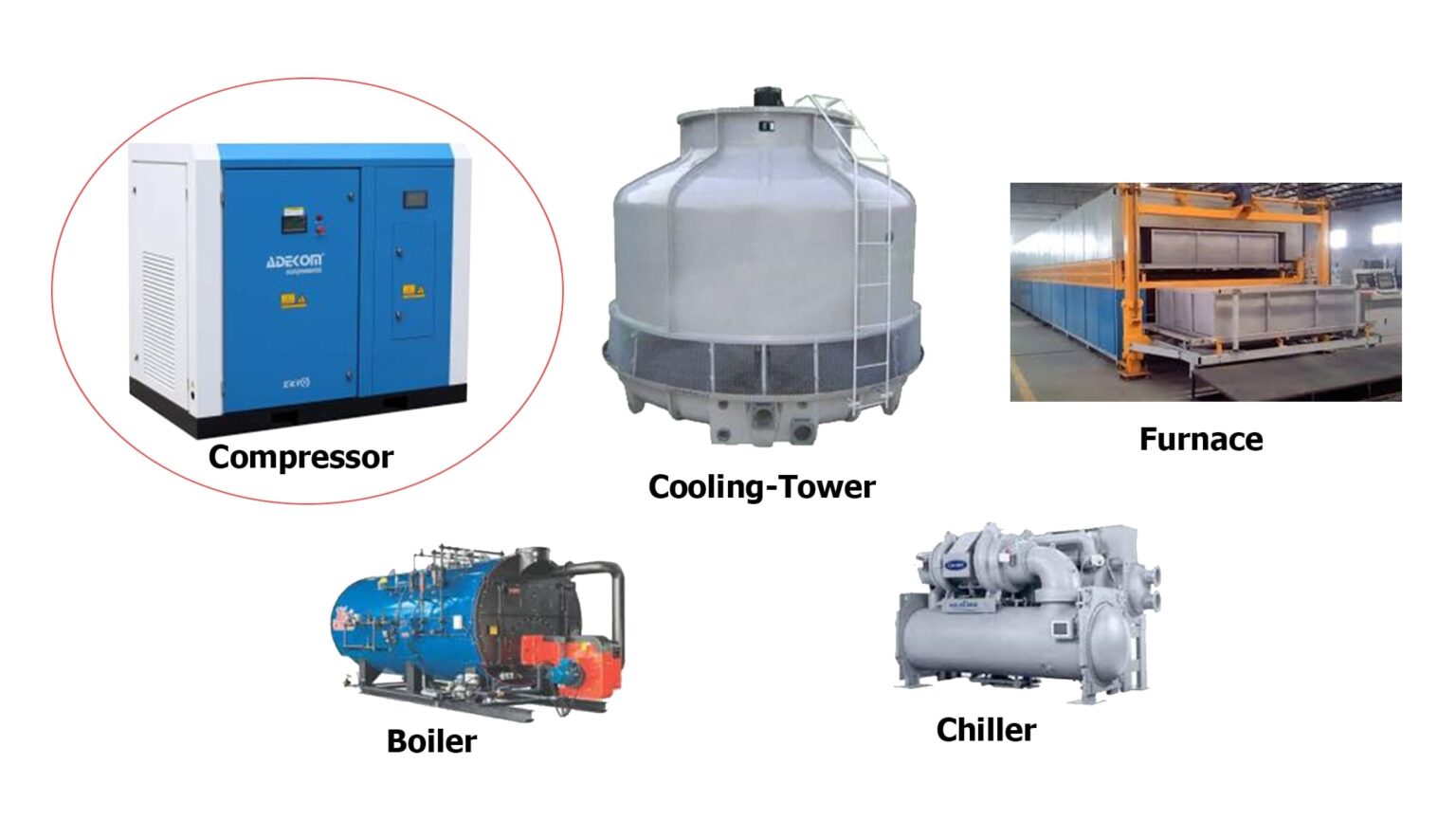

Heat Source

Heat Source-Godrej Heat Recovery System

Compressed Air Waste Heat Recovery System

Energy Losses in Compressed Air System

Sankey-diagram-for-compressed-air-system-innoprudent
Fig : Sankey Diagram For Compressed Air System

Out of 100 % Electricity Input,

  • 5 % are mechanical losses
  • 80 % are heat losses
  • Finally, only 15 % is Actually Used

Compressed Air: Most Expensive Form of Energy!

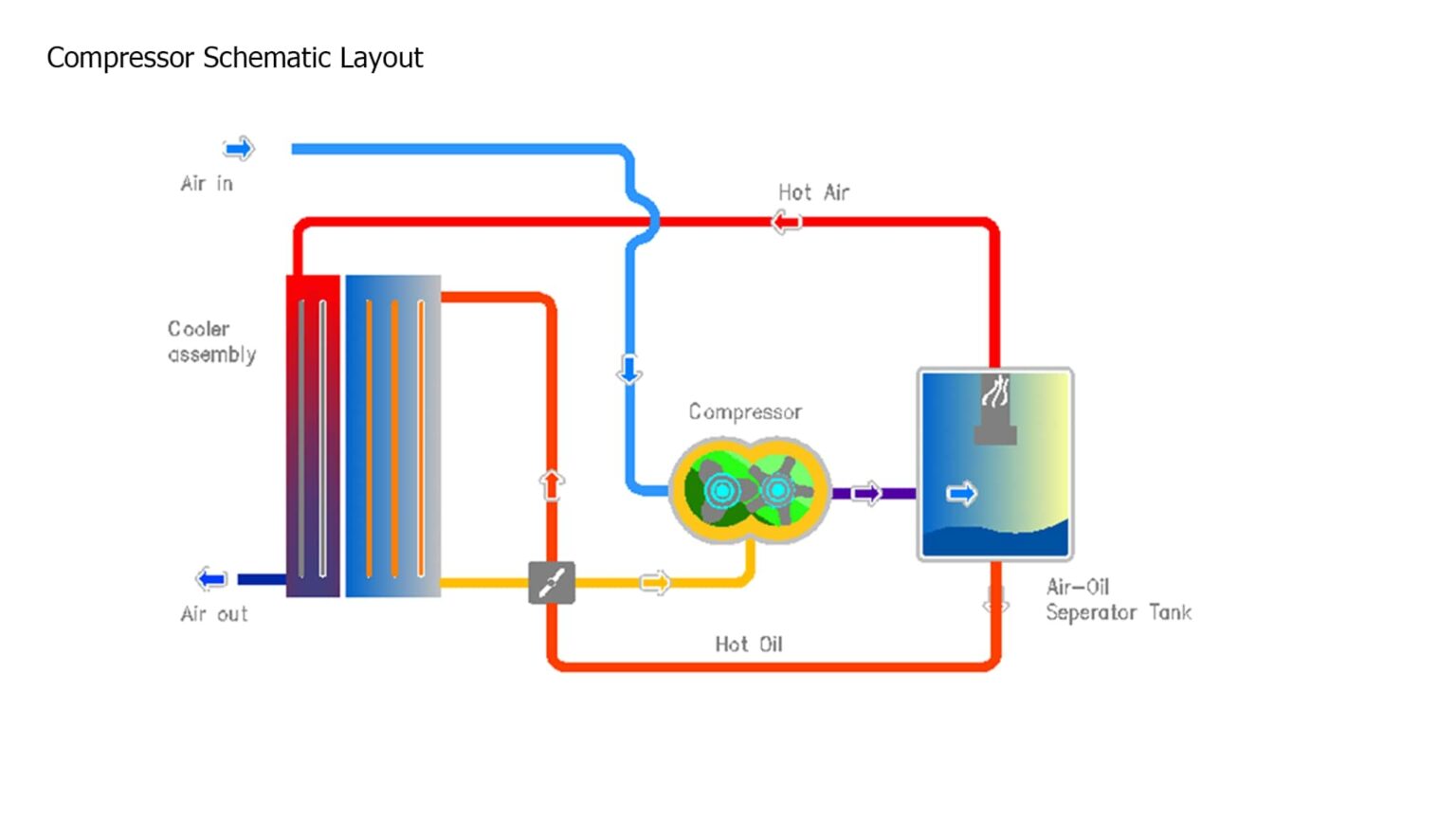

Compressor Schematic Layout

Compressor Schematic Layout-Godrej Heat Recovery System

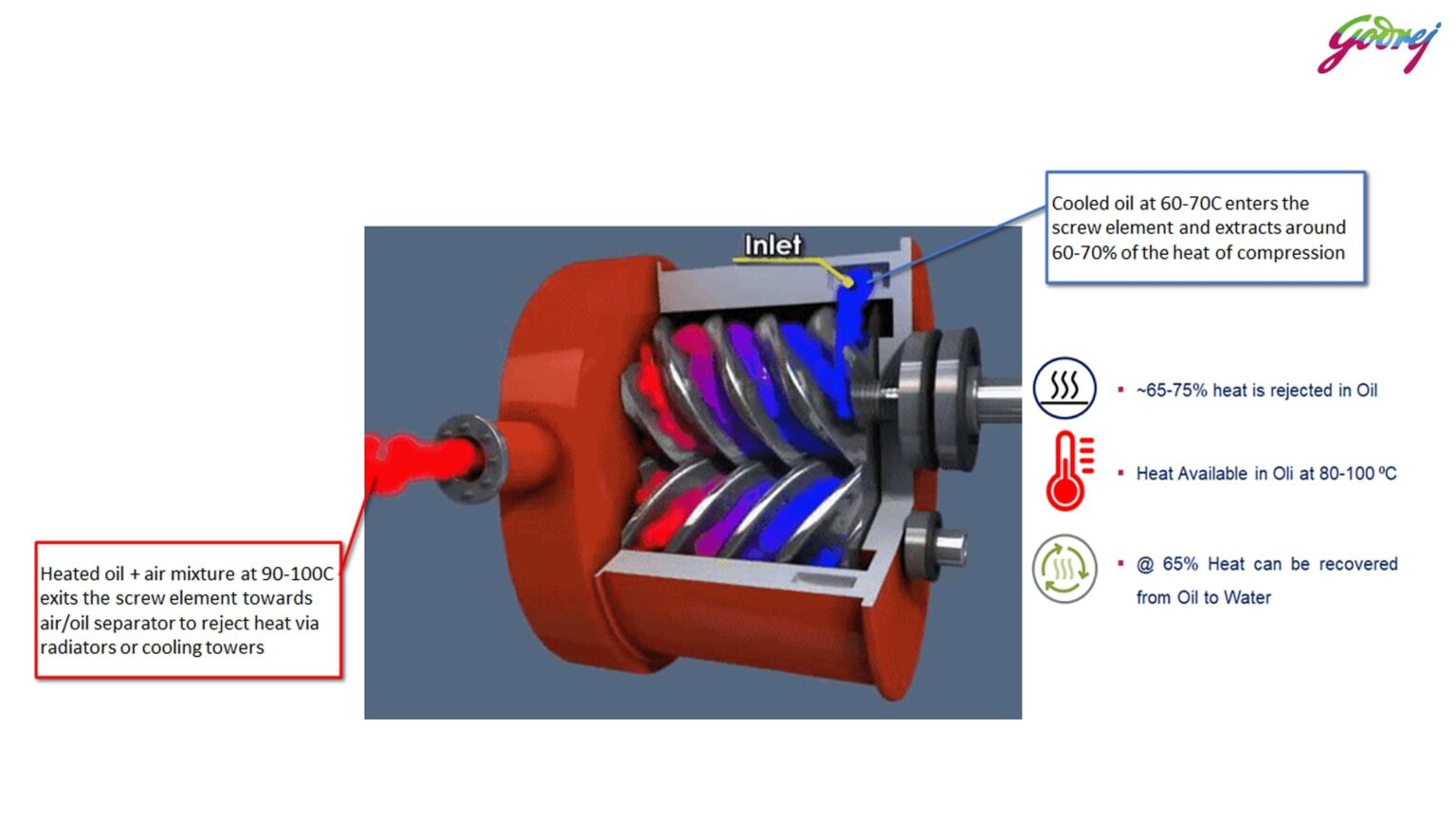

Oil is used to take out 60-70% of heat of compression

Oil is used to take out 60-70% of heat of compression

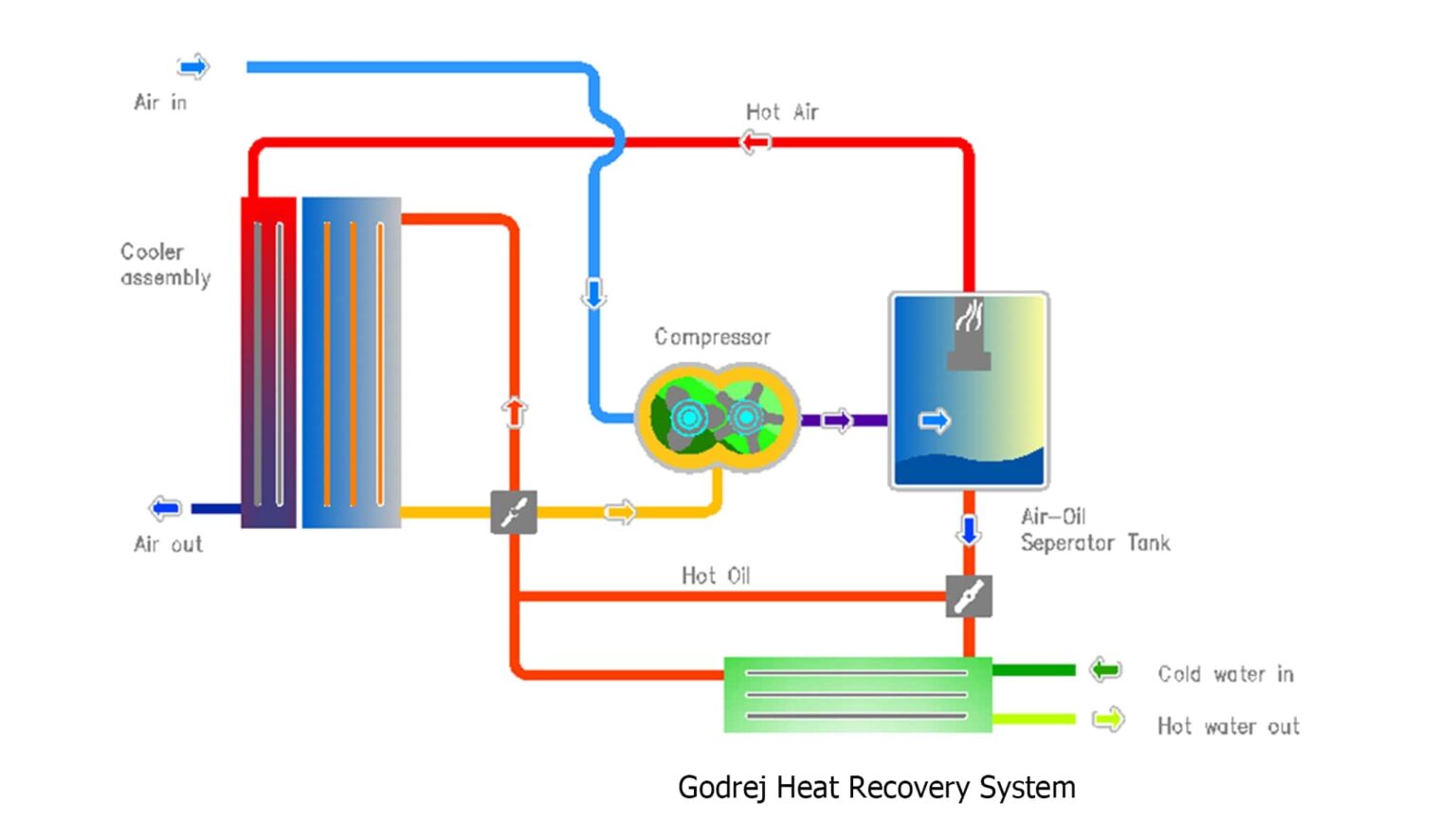

Compressor with Heat Exchanger Schematic Layout

Godrej Heat Recovery System - Innoprudent

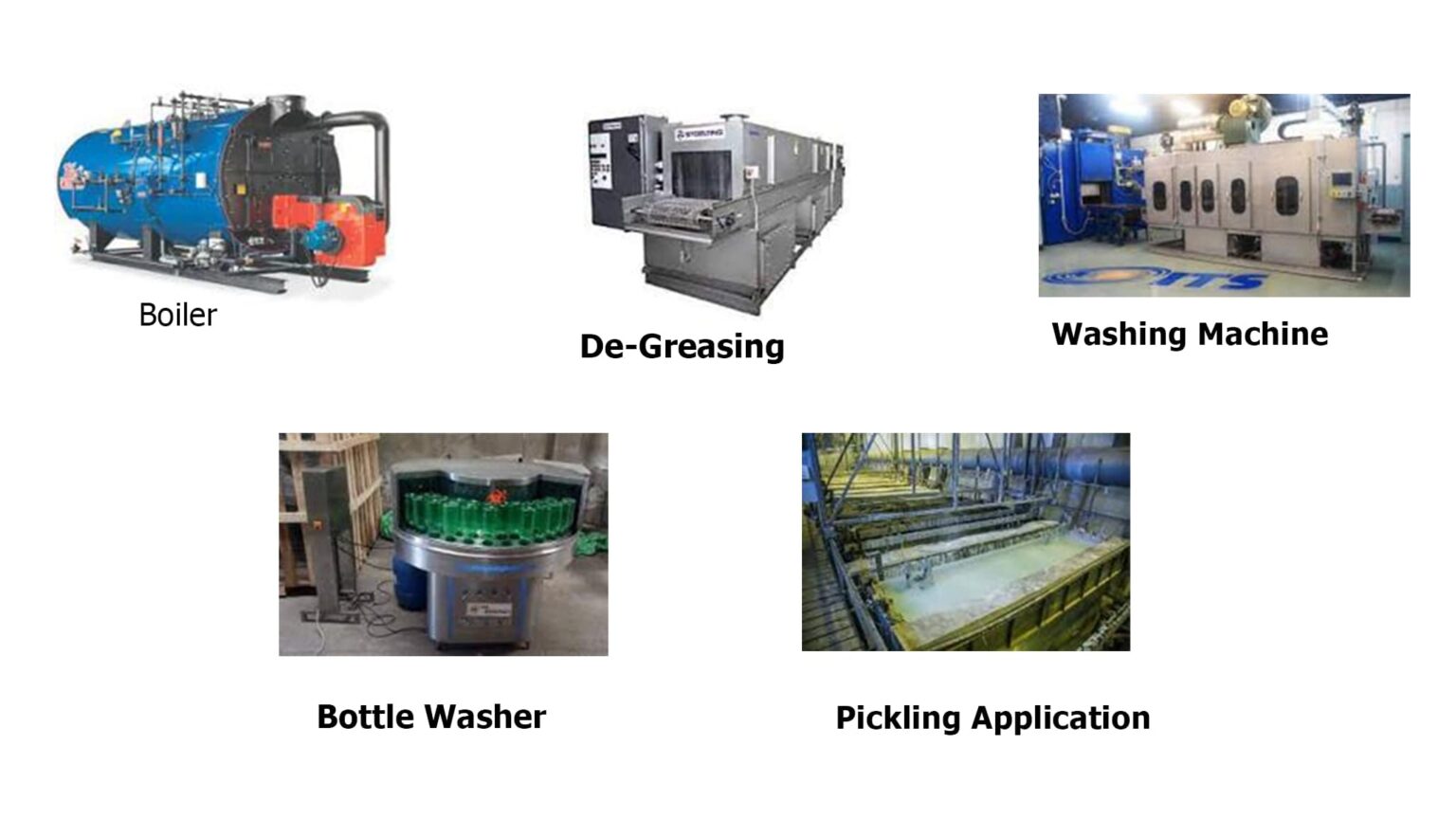

Application Of Hot Water in Manufacturing Plant

Application Of Hot Water in Manufacturing Plant

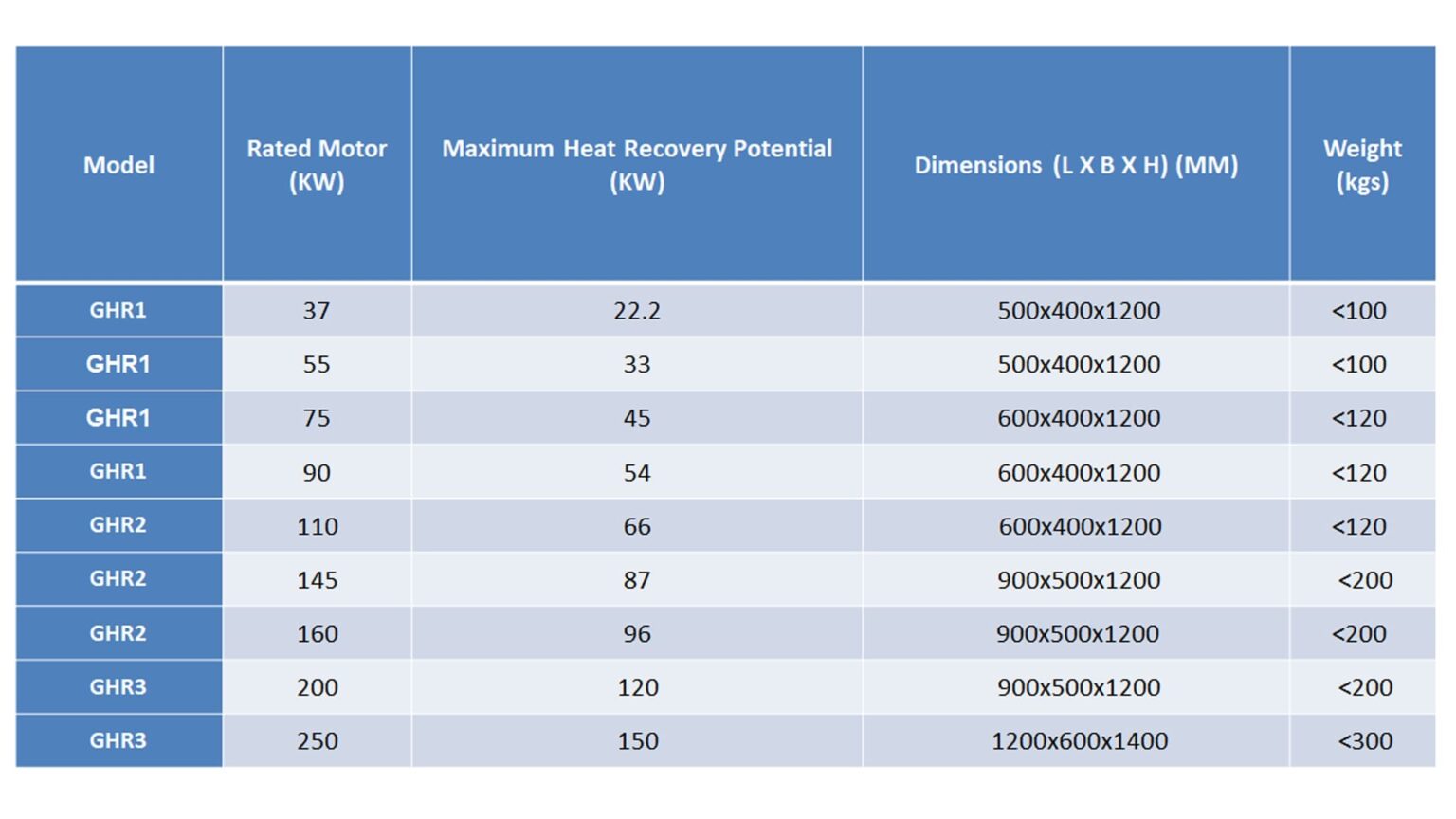

Model as Per Motor Rated KW

Model as Per Motor Rated KW-Godrej Heat Recovery System

Unique Selling Proposition in GHR

Unique Selling Proposition in GHR-Godrej Heat Recovery System

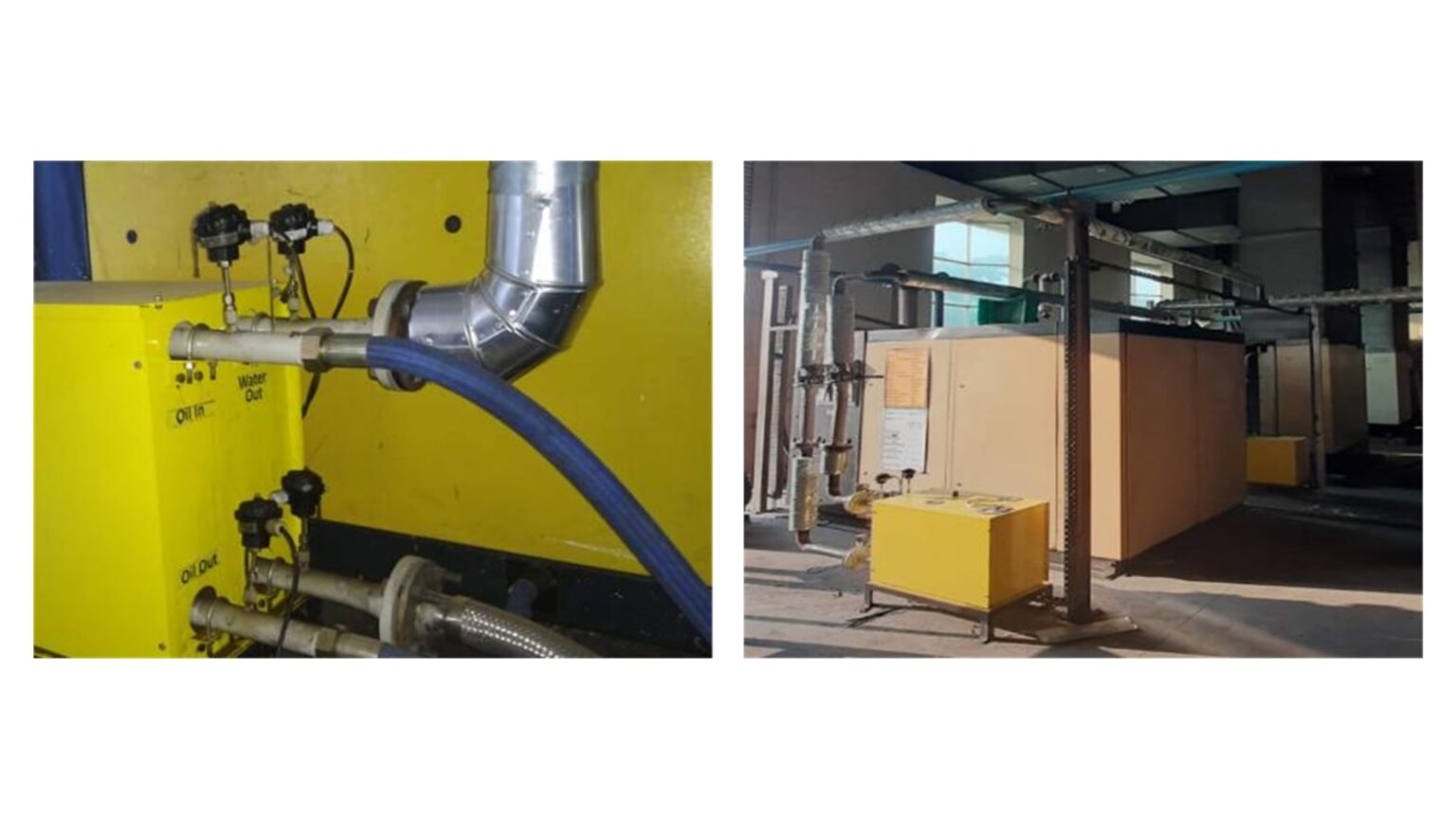

Installation Glimpses
Installation Glimpses-Godrej Heat Recovery System
List of Customers for Heat Recovery System
  • Pidilite Vapi – 132 kW/110 kW compressors
  • Premier Mills – 75 and 90 kW units
  • Raymond Vapi – 75/90/110 kW systems – multiple nos
  • Raymond Chhindwara – 110/132 kW systems – multiple nos
  • Ashok Leyland Bhandara – 55/90/160 kW
  • Ashok Leyland Pantnagar – 160 kW systems
  • Ashok Leyland Hosur units- 90 kW systems
  • Mahindra Kandivali – 320 kW single unit
  • Mahindra Zaheerabad – 160 kW, 320 kW
  • Mahindra Jaipur – 45 kW/55 kW
  • Leyland Chennai – 90 kW multiple systems
